1200 Liter Jacketed Tanks


Home Page     Contents Page     Contact Info     Email

Jacketed Tanks, Mixing Tanks, Fermenters, Brite Tanks, Silos           Call for an appointment to inspect or email request ...

Click Here  or  919 412 2155 for Inspection



#

Item Description


Asking

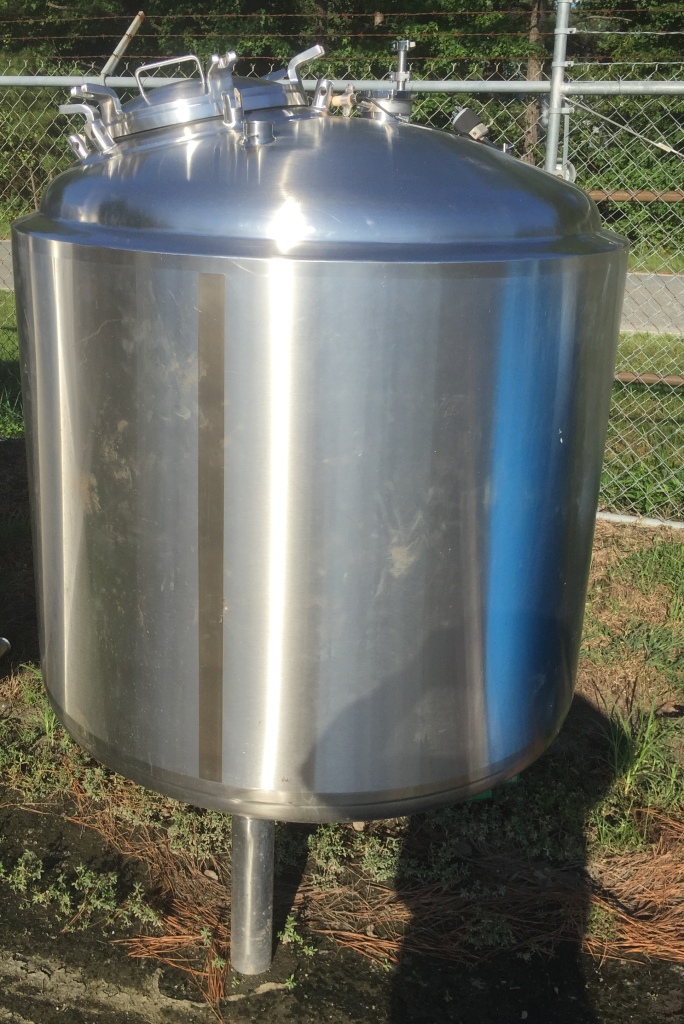

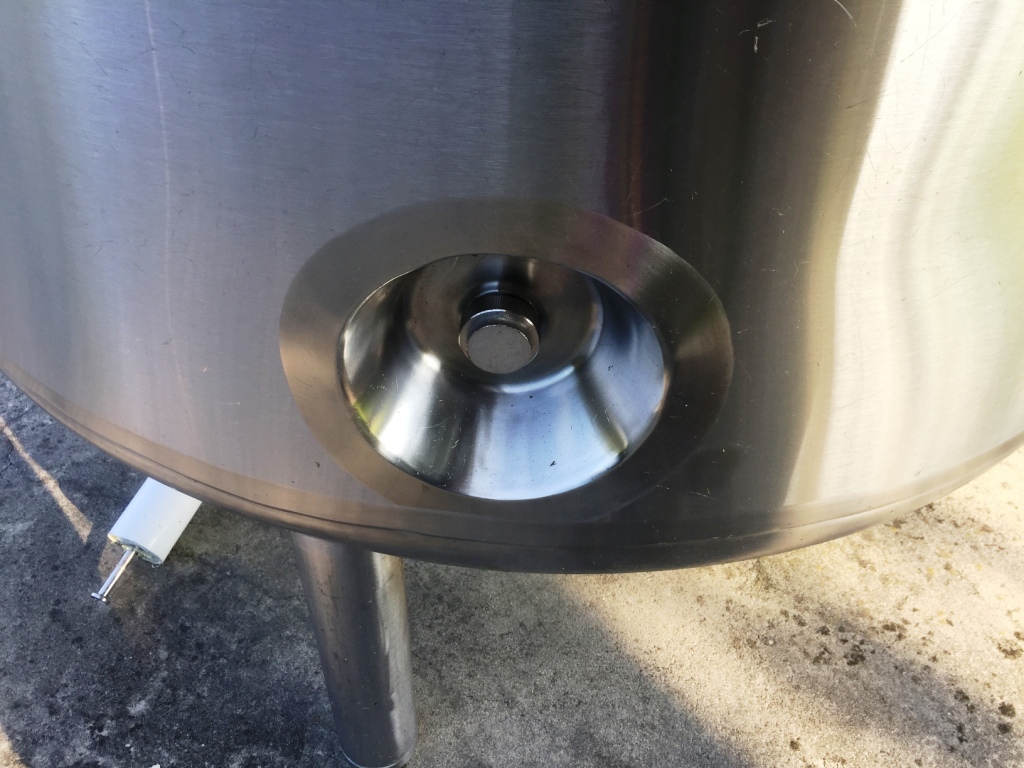

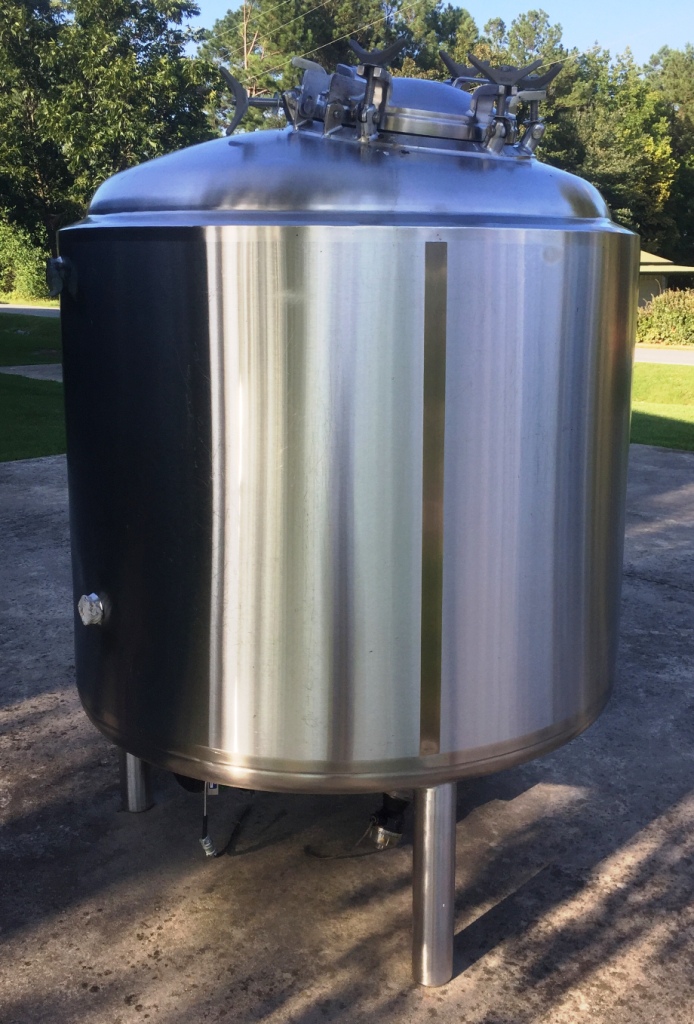

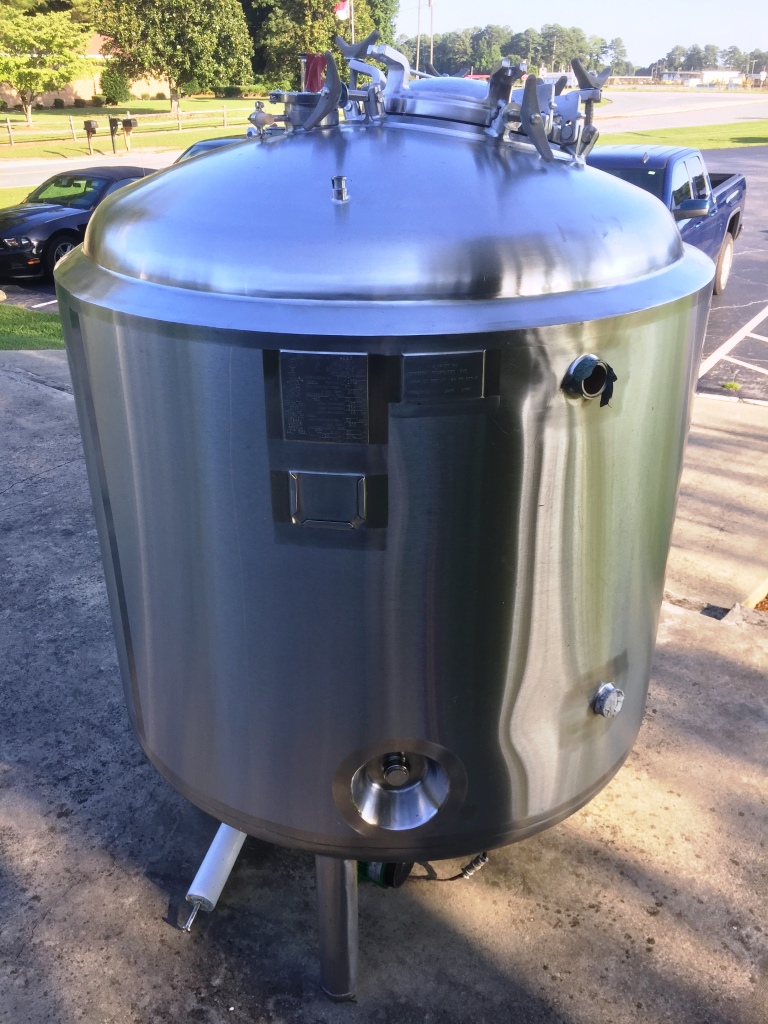

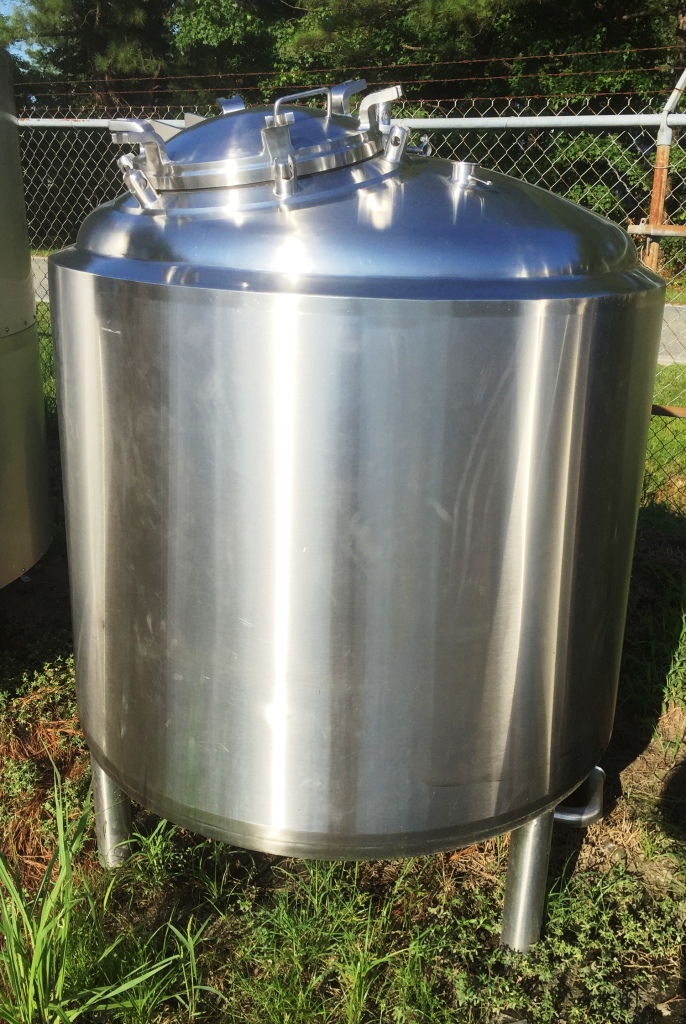

C104

Precision Stainless

1200 L Insulated Tank

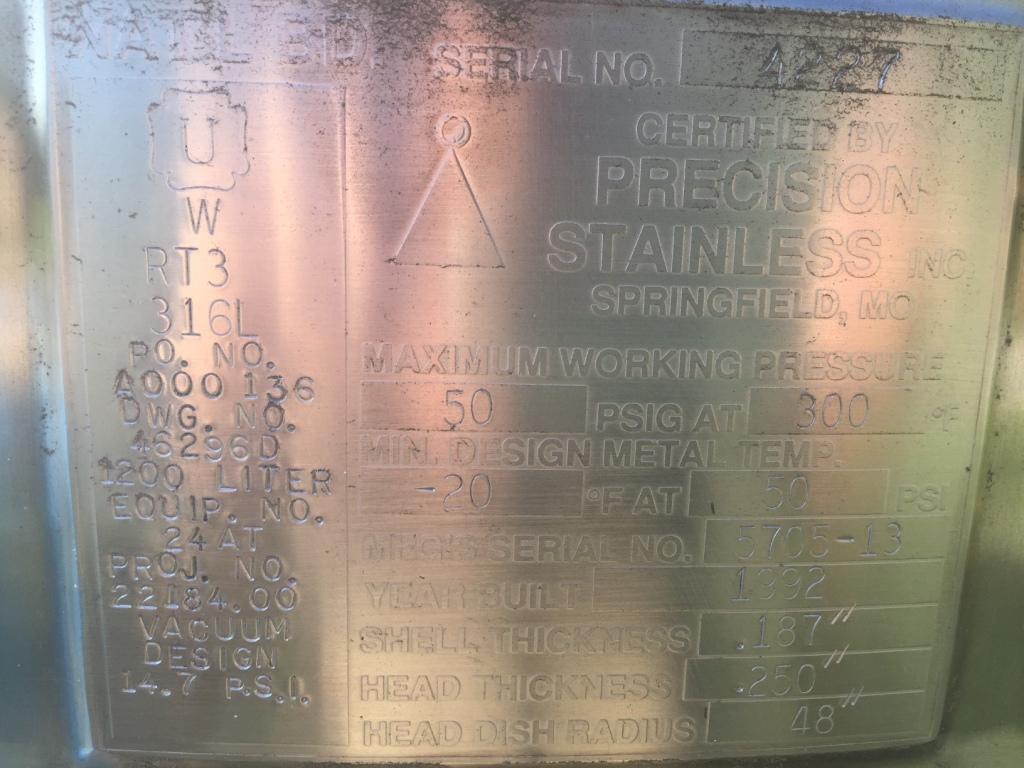

S/N 5705-13 / 316L SS / 1992 Yr

45 psig/FV / Electro Polished Interior

Designed Vacuum 14.7 PSI

Max Working Press. 50 PSIG @ 300F

Min Design Metal Temp -20F @ 50 PSIG

Shell Thk .187 / Head THK .250 / Head Dish Rad 48

Altered buy PSI in June 1995 to

MAWP 50 PSI @ -20 to 300F

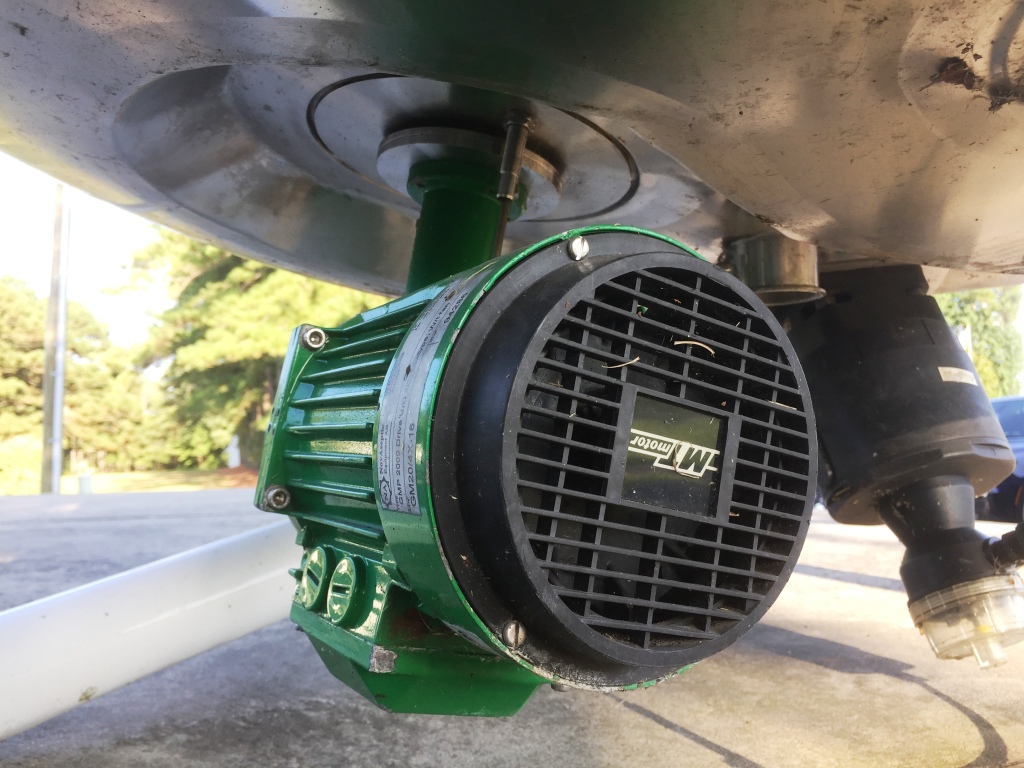

Bottom Mounted Mag Drive Mixer

NovAseptic Equip.

GMP 2000 Drive Unit AC / UL-Type / Fan

GM20/4X-16 / ID# 94284





Good Condition

Asking



$ 3,900.00

C105

Precision Stainless

1200 L Jacketed Tank

S/N 5705-14 / 316L SS / 1992 Yr

45 psig/FV / Electro polished Interior

S/N 5705-13 / 316L SS / 1992 Yr

45 psig/FV / Electro Polished Interior

Designed Vacuum 14.7 PSI

Max Working Press. 50 PSIG @ 300F

Min Design Metal Temp -20F @ 50 PSIG

Shell Thk .187 / Head THK .250 / Head Dish Rad 48

Altered buy PSI in June 1995 to

MAWP 50 PSI @ -20 to 300F



Bottom Mounted Mag Drive Mixer

NovAseptic Equip.

GMP 2000 Drive Unit AC / UL-Type / Fan

GM20/4X-16 / ID# 94286





Good Condition

Asking



$ 3,900.00

C106

Precision Stainless

1200 L Jacketed Tank

S/N 5705-11 / 316L SS / 1992 Yr

45 psig/FV / Electro Polished Interior

Designed Vacuum 14.7 PSI

Max Working Press. 50 PSIG @ 300F

Min Design Metal Temp -20F @ 50 PSIG

Shell Thk .187 / Head THK .250 / Head Dish Rad 48

Altered buy PSI in June 1995 to

MAWP 50 PSI @ -20 to 300F



Bottom Mounted Mag Drive Mixer

NovAseptic Equip.

GMP 2000 Drive Unit AC / UL-Type / Fan

GM20/4X-16 / ID# 9428?





Very Good Condition

Asking



$ 5,500.00
