600 Liter Jacketed Tank

Jacketed Tanks, Mixing Tanks, Fermenters, Brite Tanks, Silos

Call for an appointment to inspect or email request ...
Click Here or 919 412 2155 for Inspection

Precision Stainless Mfg.
600 L Insulated Tank

Item # C103

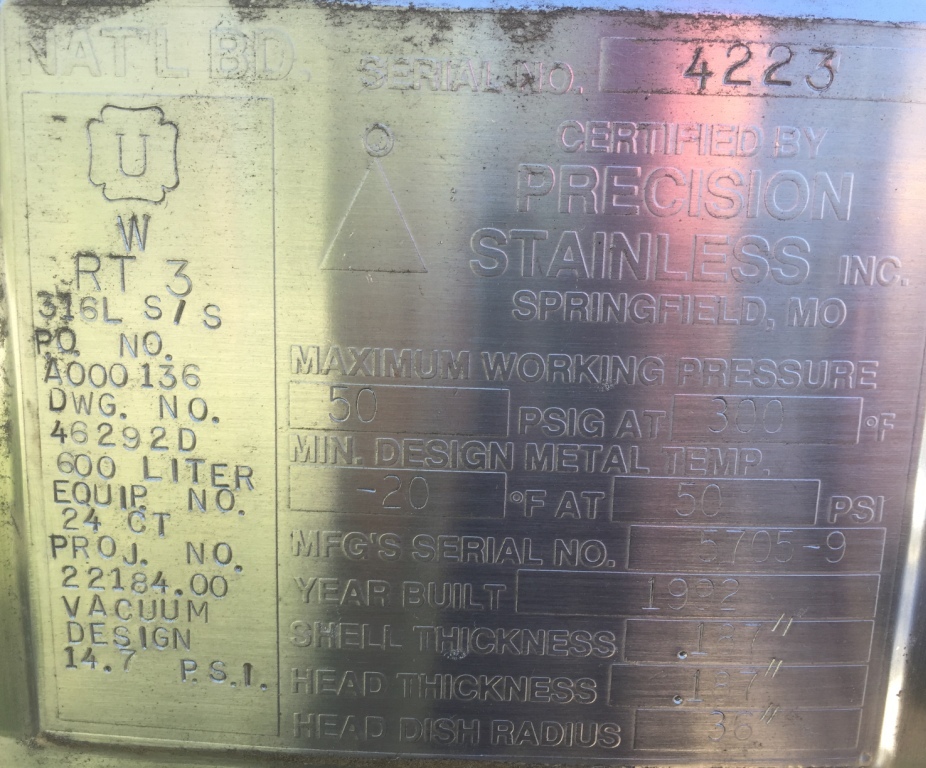

S/N 5705-9 / 316L SS / 1992 Yr
45 psig/FV / Electro Polished Interior
Designed Vacuum 14.7 PSI
Max Working Press. 50 PSIG @ 300°F
Min Design Metal Temp -20°F @ 50 PSIG
Shell Thk .187” / Head THK .187” / Head Dish Rad 36”
Altered buy PSI in June 1995 to
MAWP 50 PSI @ -20° to 300°F
Bottom Mounted Mag Drive Mixer
NovAseptic Equip.
GMP 1000 Drive Unit AC / UL-Type / Fan
GM20/4X-13 / ID# 94320

Asking $ 1950.00

763 Ridge Road
Angier, NC 27501
Tel 919 894 7976
Tim Langdon
Email or Cell 919 412 2155
